L-Acoustics – LA-RAK II AVB

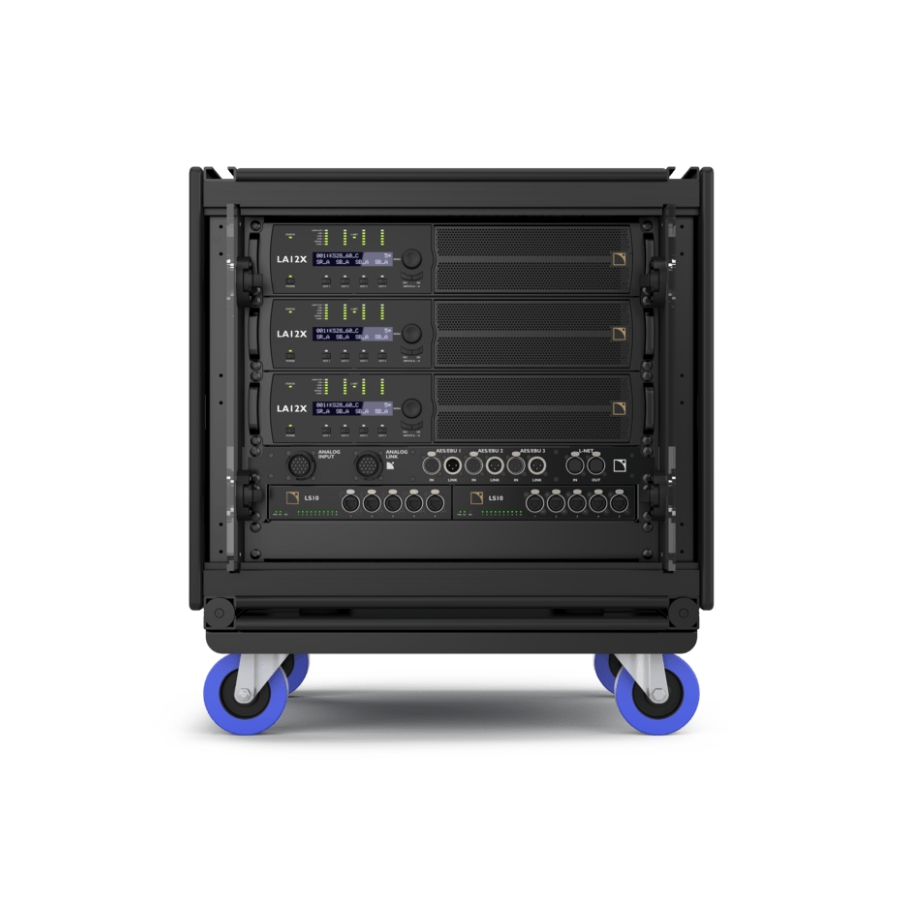

Content
Amplification 3 LA12X Amplified controllers
Network 2 LS10 AVB switches
Distribution 1 LA-PANEL II for audio distribution
1 LA-POWER II for power distribution
Misc 2 doors, cables and 2 coupling bars
Audio distribution
Analog input / link 2 x 19-point CA-COM
AES/EBU 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK)
Analog input / link (rear) 6 x male Neutrik® XLR3 (IN 1 to IN 6)
AES/EBU (rear) 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK)

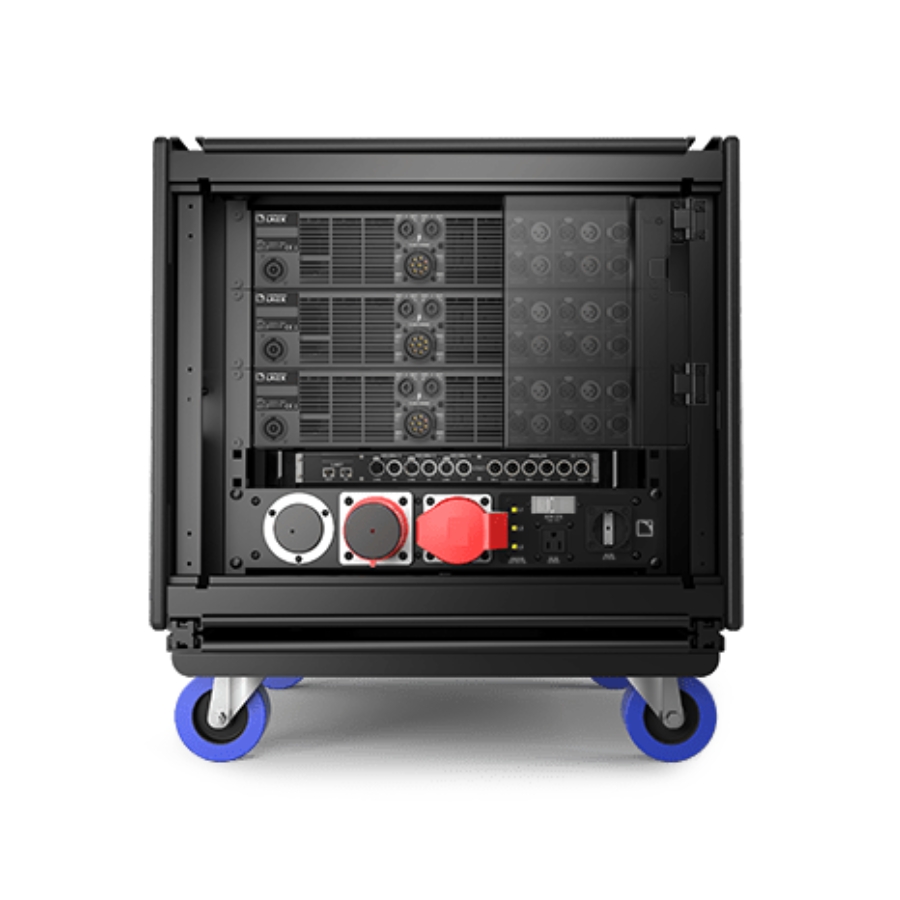

Power distribution
AC input (US) 30 A – NEMA L21-30P (3P+N+E) male outlet
AC input/link out (EU) 32 A – IEC 60309 (3P+N+E) male outlet
32 A – IEC 60309 (3P+N+E) female outlet
AC presence 3 x dual LEDs: Left: US AC input / right: EU AC input
AC auxiliary output (US) NEMA 5-15 female outlet (AUX US MODE)
AC auxiliary output (EU) Type F «Schuko» female outlet (AUX EU MODE)
Protection 10 A type C circuit breaker (AUX L3)
AC output for LA12X (rear) 3 x power cords fitted with 32 A Neutrik powerCON® connectors
(AMP 1 L1, AMP 2 L2, AMP 3 L3)
AC input selector switch (rear) Switch between EU MODE and US MODE
AC output for LS10 (rear) 2 x IEC 60320-1 type C13 female outlets (AUX L3)
Cables
Analog 6 ANALOG OUT XLR3 male/female labeled cables, 1.10 m / 3.61 ft
2 ANALOG XLR3 male/female labeled cables, 0.55 m / 1.8 ft
AES / EBU 3 AES3 OUT XLR3 male/female labeled cables, 1.10 m / 3.61 ft
3 AES3 LINK XLR3 male/female labeled cables, 1.10 m / 3.61 ft
2 AES3 XLR3 male/female labeled cables, 0.55 m / 1.8 ft
Network 3 CAT7 red Ethernet labeled cables, 1 m / 3 ft
3 CAT7 black Ethernet labeled cables,1 m / 3 ft
2 RJ45 blockout cover for LA-PANEL II
Rigging and handling
Storage and transportation 2 coupling bars
2 coupling rails
4 handles
1 dolly board
Physical data
Weight 101.5 kg / 223.8 lb (with content)
Rack Units 9 RU
Material Polyethylene, aluminium and steel external structure, LEXAN®
polycarbonate doors
